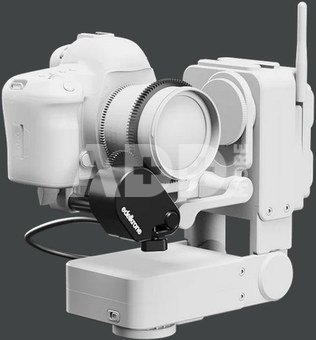

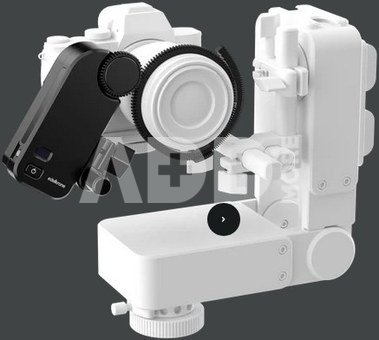

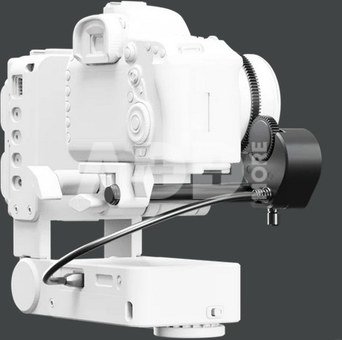

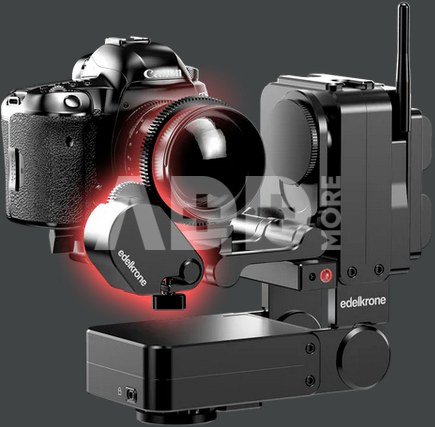

The Edelkrone Focus/Zoom Module v3 is a high-precision, single-axis motorized unit designed for seamless focus or zoom control on the HeadPLUS and HeadPLUS PRO v3, compatible with all hard-stop and infinity lenses.
The Edelkrone Focus/Zoom Module v3 is engineered for effortless, motorized focus or zoom control, enhancing your workflow with precision and reliability. This single-axis module integrates seamlessly with the Edelkrone HeadPLUS and HeadPLUS PRO v3, or operates as a standalone device with the Edelkrone App for custom setups. Crafted from CNC-machined aluminum and stainless steel, the module offers durability and stability in a lightweight package.
The module features a brushless motor with an ultra-high resolution encoder, ensuring smooth, accurate adjustments for all lenses equipped with the included Edelkrone lens gear ring (not compatible with servo lenses). A standard 0.8 mm pitch gear makes it ideal for professional cinema lenses, and it supports both hard-stop and infinity lenses, adapting to various focus mechanisms for complete flexibility. Powered by an LP-E6 battery (sold separately) or the included AC/DC adapter, the Focus/Zoom Module v3 provides a versatile power setup for extended shoots.
Included with the module is a 15mm rod, rod clamps for both 15mm and 19mm setups, a lens calibration chart and stand, and an additional lens gear, providing a complete toolkit for seamless installation and calibration.
Key Features:
- Single-Axis Control: Enables motorized focus or zoom control for smooth, precise adjustments.
- High-Resolution Brushless Motor: Ultra high-res encoder for fine control and reliable performance.
- Lens Compatibility: Compatible with all lenses equipped with the Edelkrone lens gear ring, including hard-stop and infinity lenses.
- Professional 0.8 mm Gear Pitch: Ideal for cinema-grade lenses.
- Flexible Power Options: Powered via LP-E6 battery (sold separately) or AC/DC adapter (included).
- Standalone or App-Controlled: Compatible with the Edelkrone App for customized controls.
Specifications:
- Dimensions: 4.72 x 2.16 x 1.22 in (120 x 55 x 31 mm)
- Weight: 0.57 lb (261 g)
- Gear Pitch: 0.8 mm
- Materials: CNC-machined aluminum and stainless steel
- Power Input: LP-E6 battery (not included) or AC/DC adapter (included)
Box Content:
- Focus/Zoom Module v3
- 15mm rod and 15mm/19mm rod clamps
- Lens calibration chart & stand
- Lens gear
- AC/DC adapter
