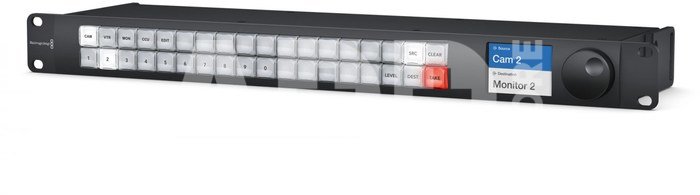

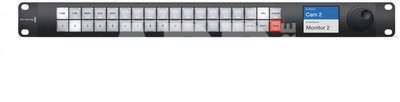

Ethernet hardware panel with spin knob control. The Videohub Master Control Pro is a remote 1RU panel that gives you complete control over your entire router from anywhere in the studio. Simply connect Master Control Pro to your ethernet network and you get full control of every crosspoint on your router. The front panel features programmable buttons, spin knob control and an elegant LCD for displaying source and destination labels. That means you can see and route all of your cross-points remotely, even on the biggest Videohub! 11/2019.
Videohub Master Control Pro allows for very flexible control because it has two main methods for changing cross points on Videohub routers. The simplest way to use Videohub Master Control Pro is for customers to simply select either destination or source and then scroll through all the cross points in the router using the larger knob on the right side of the panel. The built in LCD shows cross points as the user scrolls using large easy to read labels, and scroll order is based on alphabetical order of crosspoint labels so it’s easy to scroll to the crosspoint the customer requires even on a very large router.
Videohub Master Control Pro also includes direct entry of cross point labels via built in buttons. These buttons are a combination of customizable buttons as well as numeric buttons. Customers can easily set the customizable buttons to labels such as “Monitor”, “Deck” or “Edit” etc, and then router cross points can be entered in by simply pressing the custom button followed by the number. For example if a customer wanted to enter in the destination “Monitor 3” then they only need to select the customized Monitor button followed by the 3 button. This means Videohub Master Control Pro gives customers full access to very large routers, but is still very fast to use.
Direct entry buttons also allow limiting the scroll list when using the spin knob. For the above example, if the user presses the Monitor button, then the list available to the spin knob would be limited to any cross point labeled Monitor. The user can then type in 3 to select monitor 3 as in the example above, or just scroll through all the monitor labels and select Monitor 3 via the spin knob.
Videohub Master Control Pro is still low cost enough so every user in a facility can afford to install one, and they can be positioned anywhere needed so everyone has easy access to changing router cross points.
Videohub Master Control Pro features a new machined metal design with attractive RGB illuminated crystal look buttons combined with an attractive color LCD for status and machined aluminum knob for scrolling cross points. This makes Videohub Master Control Pro one of the most attractive router control panels on the market. Blackmagic Design believes that even though routers are technical by nature, there is no reason why they have to be ugly. We believe that with the new Videohub Master Control Pro customers will see a dramatic improvement in ease of routing and a more pleasant user experience.
Videohub Master Control Pro has been designed to be easy for customers to self install. Videohub Master Control Pro uses standard ethernet networking and simply plugs into the existing computer network. If used in mission critical environments, Videohub Master Control Pro could be connected to a dedicated switch. Videohub Master Control Pro can be powered via power over ethernet (PoE) without the need for a power supply.
Because Videohub Master Control Pro has been designed to fit into creative post production facilities, it includes attractive crystal look buttons that are designed for high reliability. The button caps can be removed from the front to allow custom labeling of the buttons. For world’s best illumination quality, all buttons are illuminated by RGB LEDs so that a wider range of rich and clean colors can be displayed. When used in dark rooms, all buttons can be backlit, so button labels can be clearly seen.
Videohub Master Control Pro Features
- Ethernet connection with Power over Ethernet and non powered loop through.
- 110-240V volt power connection included for use with not powered by Ethernet.
- Full access to every cross point on routers via direct entry or spin knob scrolling.
- Spin knob allows customers to scroll through router labels in alphabetical order.
- Direct button entry allows router labels to be typed in, or to limit to a scrolling list.
- Supports optional “take” button set via software configuration.
- Includes Mac and Windows software for control panel programming.
- Button caps can be removed for easy labeling.
- Buttons are illuminated by RGB LEDs for highest illumination quality.
- Compact 1 rack unit size, approximately three inches deep.
- Works with all Videohub models.
Videohub Master Control Pro

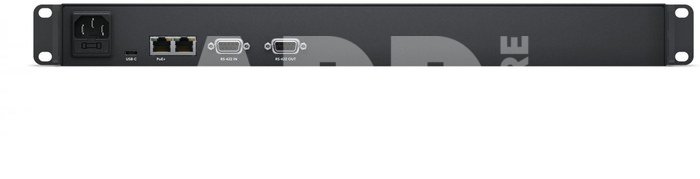

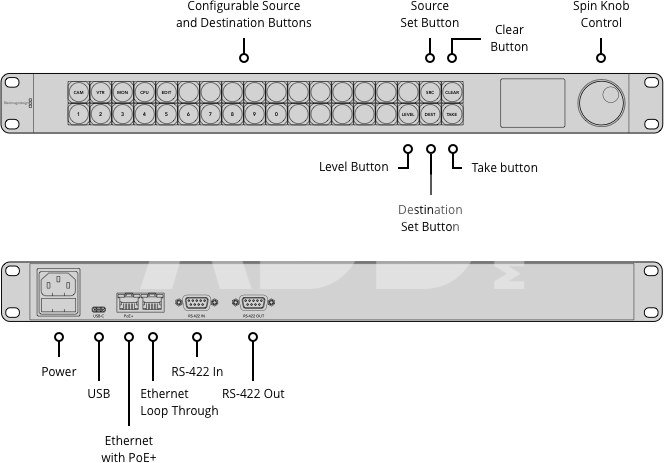

Connections
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Hardware Control
21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Internal Software
Internal Software upgrade via included firmware updater application via USB or ethernet.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Installation

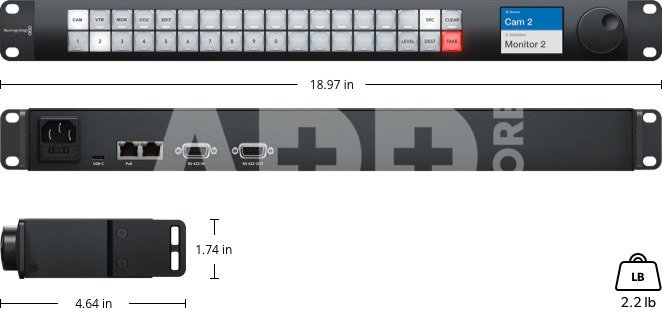

1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0high speed (480Mb/s) interface.
Power Requirements
Power Fail Requirements
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Warranty
12 Months Limited Warranty.
