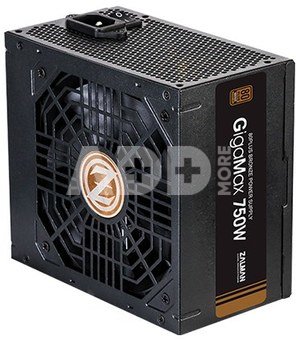

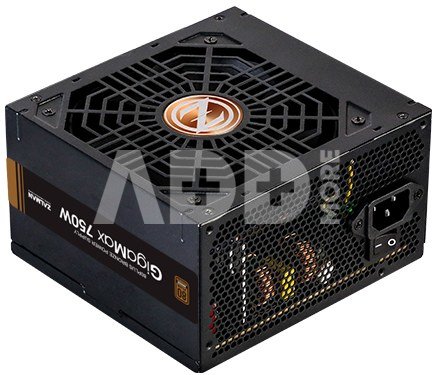

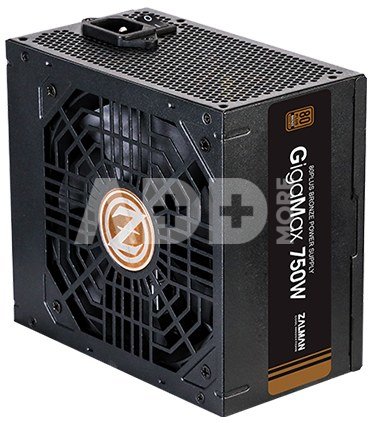

Zalman GigaMax 750W 80+Bronze 230V EU

80 Plus Bronze 230V EU certified Power Supply Unit. It supplies smooth power to the PC while reducing unnecessary power consumption by using high-performance parts that are very durable and reliable.

Power
Total power:	750 W
AC input voltage:	200 - 240 V
AC input frequency:	50/60 Hz
Input current:	6 A
Combined power (+3.3V):	120 W
Power factor:	99
Maximum input current (@110V):	6 A
Combined power (+12V):	744 W
Combined power (+5V):	120 W
Power Factor Correction (PFC) type:	Active
Combined power (-12V):	3.6 W
Max output current (+5Vsb):	2.5 A
Combined power (+5Vsb):	12.5 W
Max output current (+3.3V):	20 A
Max output current (+12V):	62 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Efficiency:	88%
Power protection features:	Over current, Over power, Over voltage, Under current, Under voltage
Ports & interfaces
Number of SATA power connectors:	2
Peripheral (Molex) power connectors (4-pin):	1
Motherboard power cable length:	55 cm
PCI Express power connectors (6+2 pin):	2
CPU power connector (4+4 pin):	Y
SATA power cable length:	400 mm
Peripheral (Molex) power cable length:	400 mm
PCI Express connector:	Y
PCI Express power cable length:	50 cm
Cabling type:	Non-Modular
Motherboard power connector:	20+4 pin ATX
CPU power cable length:	65 cm
ATX power connector (20+4 pin):	Y
Performance
Mean time between failures (MTBF):	100000 h
80 PLUS certification:	80 PLUS Bronze
Supported motherboard form factors:	ATX, micro ATX, Mini-ITX
Bearing technology:	FDB
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
Noise level:	37.7 dB
Safety:	CB, CE, KC, EAC, RoHS
Certification:	80 Plus, CB, CE, KC, EAC, RoHS
Country of origin:	China
Design
Colour of product:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:	Y
Tehniskās detaļas
Sustainability certificates:	RoHS
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	5 - 85%
Weight & dimensions
Width:	140 mm
Depth:	150 mm
Height:	86 mm
Weight:	2.09 kg

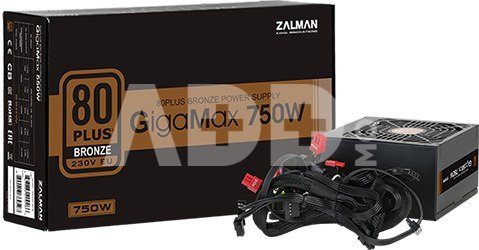

Packaging data
Package type:	Box

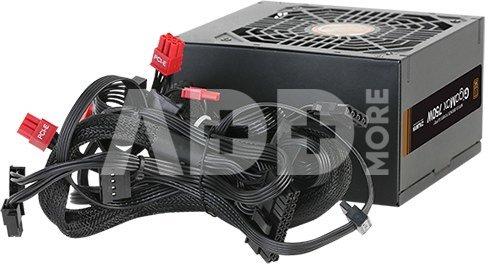

Cables included:	AC, CPU, PCIe, Peripheral (Molex), SATA
Package width:	180 mm
Package depth:	280 mm
Package height:	100 mm
Package weight:	2.12 kg

Warranty 60 months

Weight 2.16 kg

Delivery time 7-10 w.d.

Discuss with a consultant in Kaunas

We don't have Klaipėda Address: Birželio 23-iosios g. 23g Working hours: I-V 09:00 - 18:00 VI-VII not working Phone: +370 674 59488

Discuss with a consultant in Klaipėda

We don't have Klaipėda Address: Taikos pr. 17 Working hours: I-V 10:00 - 19:00 VI 10:00 - 14:00 VII not working Phone: +370 604 43972

Producer(?) Link to the official manufacturer website	Zalman
Warranty	60 months
Weight	2.16 kg
Delivery time	7-10 w.d.
Product codes	02431MCF ZM750-GVII 8809213769610
