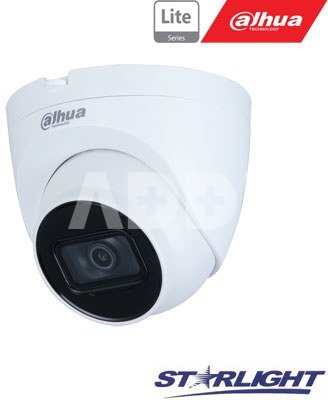

IP network camera Full HD HDW2231T-AS 2.8

Features:• 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition• Outputs max. 2MP (1920 × 1080) @25/30 fps• H.265 codec, high compression rate, ultra-low bit rate• Built-in IR LED, max. IR distance: 30 m• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes• Intelligent detection: Intrusion, tripwire• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection• Supports max. 256 GB Micro SD card, built-in Mic• 12V DC/PoE power support• IP67 protectionTechnical Specifications:Camera• Image Sensor 1/2.8”2Megapixel progressive CMOS• Effective Pixels 1920 (H) ×1080 (V)• ROM 128 MB RAM 128 MB• Scanning System Progressive• Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s• Min. Illumination 0.002 Lux @F1.6• IR Distance 30 m (98.4 ft)• IR On/Off Control Auto/Manual• IR LEDs Number 2• Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°Lens• Lens Type Fixed-focal• Mount Type M12• Focal Length 2.8 mm• Max. Aperture F1.6• Field of View 2.8 mm: Pan:106° Tilt: 56°• Iris Type Fixed aperture• Close Focus Distance 2.8 mm: 0.6 mSmart event• General IVS Analytics Tripwire; intrusionVideo• Video Compression H.265; H.264; H.264B; MJPEG• Smart Codec YesVideo Frame Rate• Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps)• Stream Capability 2 streams• Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)• Bit Rate Control CBR/VBR• Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps• Day/Night Auto(ICR)/Color/B/W• BLC Yes• HLC Yes• WDR 120 dB• White Balance Auto/natural/street lamp/outdoor/manual/regional custom• Gain Control Auto/Manual• Noise Reduction 3D DNR• Motion Detection OFF/ON (4 areas, rectangular)• Region of Interest(RoI) Yes (4 areas)• Smart IR Yes• Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)• Mirror Yes• Privacy Masking 4 areasAudio• Built-in MIC Yes• Audio Compression G.711A; G.711Mu; G.726; AACNetwork• Network RJ-45 (10/100 Base-T)• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour• Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec• User/Host 20• Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS• Browser: IE, Chrome, Firefox• Management Software Smart PSS; DSS; DMSS• Mobile Phone IOS; AndroidCertifications• CE-LVD: EN60950-1• CE-EMC: Electromagnetic Compatibility Directive• 2014/30/EU• FCC: 47 CFR FCC Part 15, Subpart B• UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07Power• Power Supply 12V DC/PoE (802.3af)• Power Consumption < 6.5WEnvironment• Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ? 95% RH• Strorage Conditions -40°C to +60°C (-40°F to +140°F)• Ingress Protection IP67Structure• Casing Metal + plastic• Dimensions 100.9 mm × ?109.9 mm (4.0" × ?4.3")• Net Weight 0.39 kg (0.9 lb)• Gross Weight 0.56 kg (1.2 lb)
