DJI Mic 3 (2 TX + 1 RX + Charging Case)

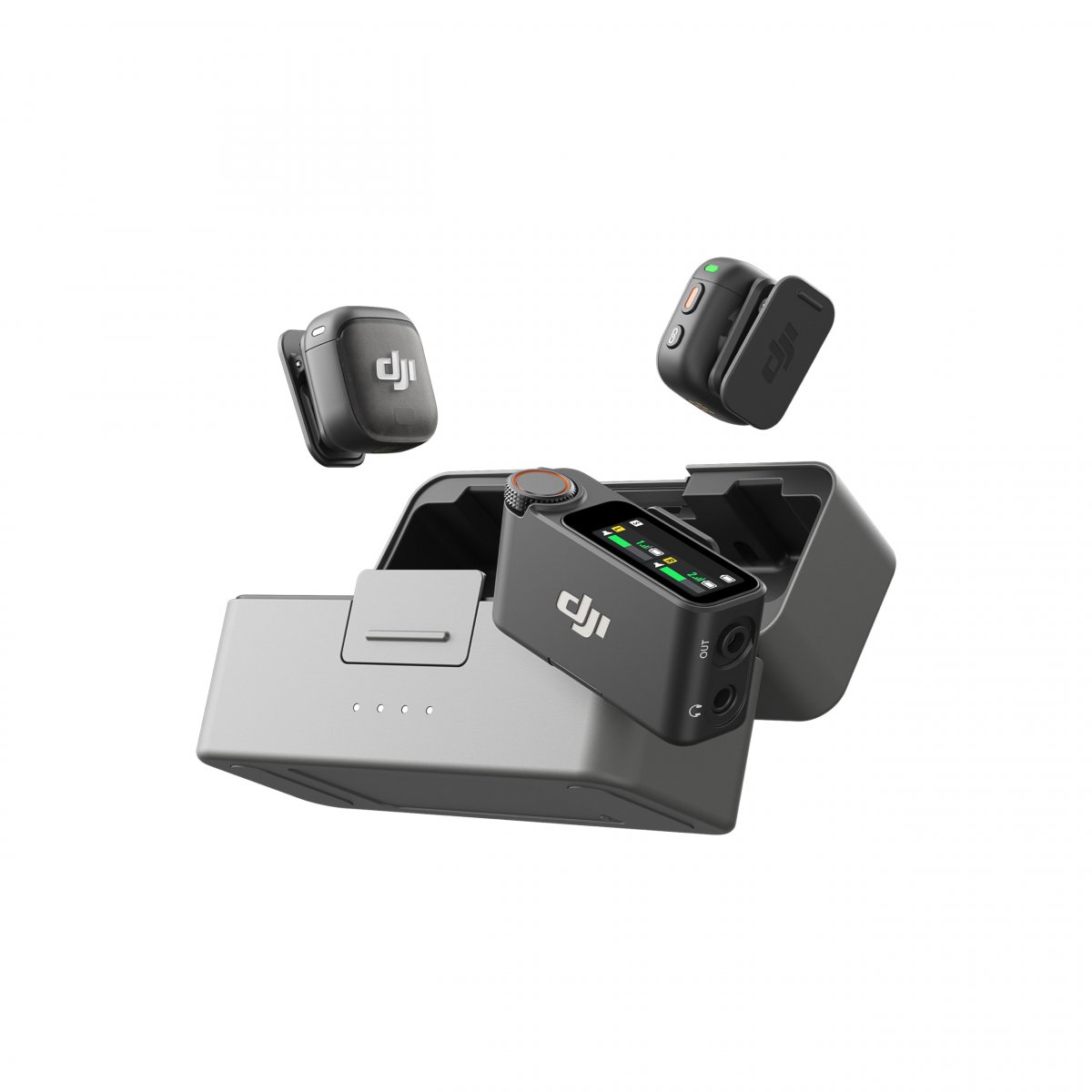

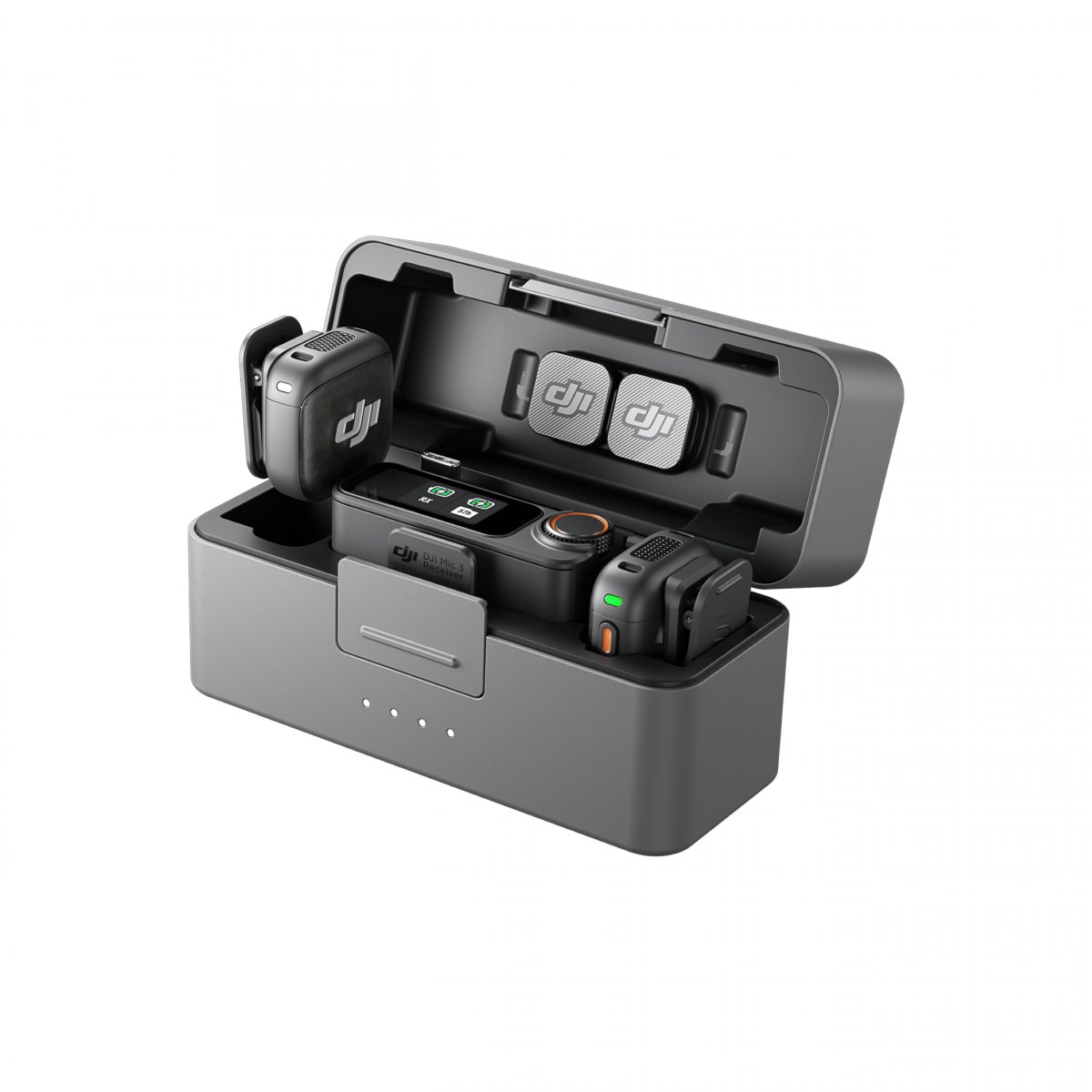

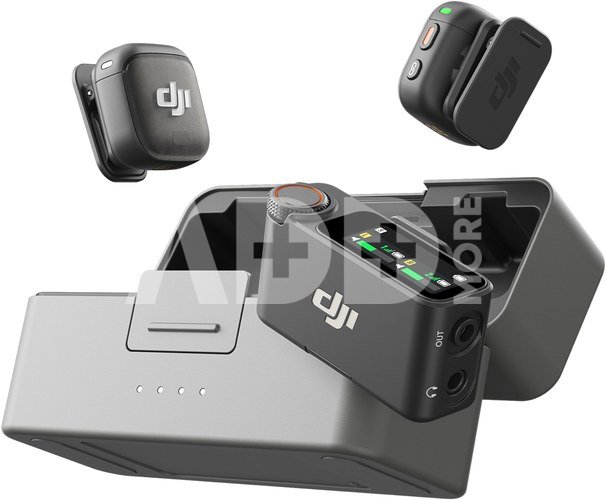

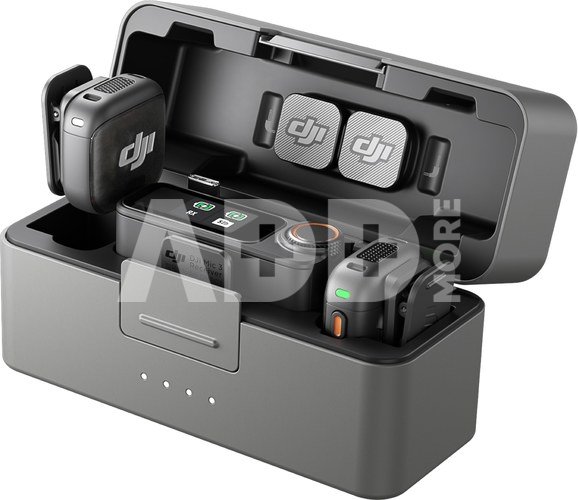

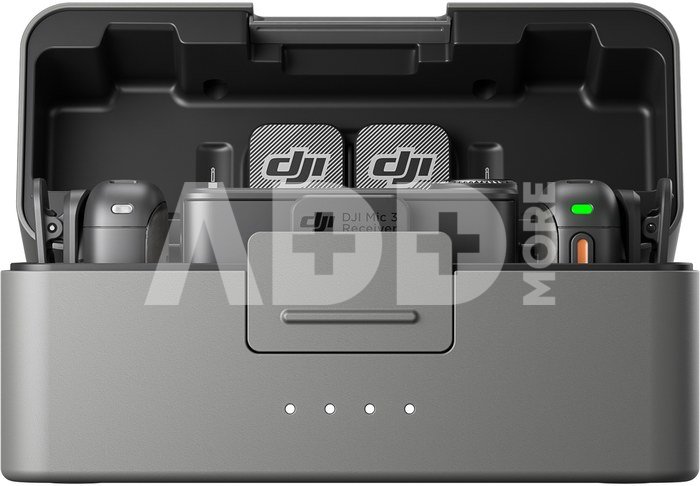

DJI Mic 3 (2 TX + 1 RX + Charging Case). Includes two transmitters, one receiver, and a charging case (max 28-hour operating time with case), suitable for two or more users. The DJI Mic 3 Transmitter is compact, lightweight, and discreet. It supports both magnetic and clip-on attachment methods. The detachable, rotatable clip allows you to flexibly adjust the microphone angle, whether clipped sideways or inverted, ensuring optimal audio capture in any scenario. The charging case neatly holds two transmitters and one receiver. Each transmitter fits inside with the windscreen and either the magnet or magnetic clip attached—no need to remove them. When the transmitters are stored with the clips attached, the lid also has space for the magnets and locking audio adapter cable, so everything stays organized and ready to go.









ADAPTIVE GAIN CONTROL FOR BALANCED VOLUME



Automatic mode effectively prevents audio clipping, making it ideal for outdoor environments with dramatic volume fluctuations, such as sporting events. Dynamic mode automatically adjusts gain in response to volume changes, ensuring consistent loudness—ideal for quiet indoor settings like studios.





THREE VOICE TONE PRESETS TO MATCH YOUR STYLE



Regular is the default setting, offering clean, natural, and balanced audio. Rich puts extra emphasis on the lows for a fuller, more powerful sound. Bright highlights the highs, giving your voice extra clarity and sparkle.





TWO-LEVEL NOISE CANCELLING FOR FOCUSED SOUND



The Basic level is ideal for quiet indoor settings, reducing fan, air conditioning, and reverb noises while preserving vocal clarity. The Strong level excels in noisy environments, significantly cutting ambient noise for clearer vocals. With the windscreen attached, the transmitter effectively reduces wind noise and other unwanted noise, delivering crisp, clear audio even in windy conditions or noisy environments—ideal for live streaming, vlogging, and more.









EFFORTLESS CONTROL, SMOOTH OPERATION

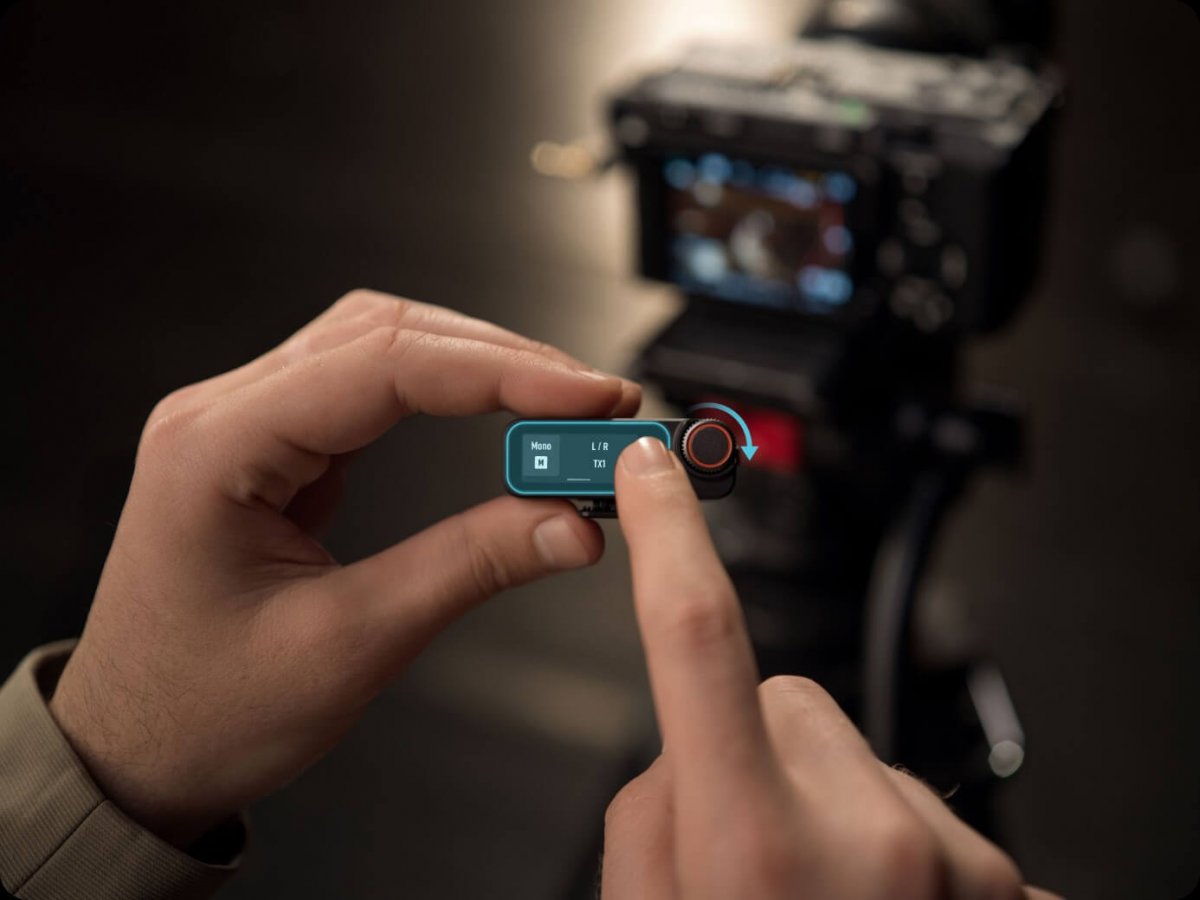

The receiver features a 1.1-inch AMOLED touchscreen and a dial, putting gain, battery status, and modes at your fingertips. Adjust settings quickly and enjoy flexible, efficient operation. Use the DJI Mimo app to fine-tune settings and update firmware directly from your phone. Enjoy quick, convenient parameter adjustments and effortless upgrades.





FLEXIBLE, VERSATILE CHANNEL SETTINGS



The receiver lets you choose between Mono and Stereo (dual-channel) modes—output audio from each transmitter separately, or merge them into a single track to suit any creative scenario.











FOUR-CHANNEL OUTPUT, EFFORTLESS EDITING



When set to Quadraphonic mode, the DJI Mic 3 Receiver—paired with select Sony cameras or computer software—supports independent output of four audio tracks. This enables precise track separation and flexible mixing, giving you greater creative freedom in post-production.





DUAL-BAND RELIABILITY, ROCK-SOLID TRANSMISSION



DJI Mic 3 supports automatic frequency hopping between 2.4 GHz and 5 GHz bands, with a transmission range of up to 400 meters. Its robust anti-interference capabilities ensure stable audio transmission, even in complex wireless environments like trade shows.





PRISTINE AUDIO



With Lossless Audio enabled, the transmitter delivers uncompressed 48kHz 24-bit audio directly to the receiver. This ensures every recording is captured in stunning, high-fidelity detail.









INTERNAL RECORDING



Never worry about lost audio—internal recording protects your material from wireless interference or device failures. With dual-file internal recording, DJI Mic 3 saves both the original track and an algorithm-enhanced version at once, streamlining your workflow and keeping your creative process smooth.





32-BIT FLOAT INTERNAL RECORDING



With support for 32-bit float internal recording, DJI Mic 3 provides a high dynamic range that not only delivers high-quality recording but also adapts better to complex sound environments. It excels in capturing every nuance of a voice, from quiet whispers to booming decibel levels, providing greater reliability in erratic noise scenarios and more flexibility in post-production.







BUILT-IN TIMECODE FOR PRECISE SYNC



DJI Mic 3 offers high-precision timecode support, with the transmitter embedding timecode data during internal recording and the receiver supporting both timecode input and output. With less than one frame of drift over 24 hours, you can instantly align multi-camera footage in post-production, making editing faster and more efficient.







HASSLE-FREE FILE EXPORT



When you're done shooting, simply use the charging case and USB-C data cable to connect both transmitters to your computer or smartphone. Instantly transfer all your internally recorded files in one go—editing and sharing couldn't be easier. You can also connect a transmitter to the DJI Mimo app to download audio files, offering flexible export options to suit your needs.





28-HOUR EXTENDED BATTERY LIFE



A transmitter lasts up to 8 hours, and a receiver up to 10 hours. A fully charged charging case provides about 2.4 full charges to achieve a total of 28 hours of extended use. Easily handle long video shoots and live streams without worrying about running out of power.





5-MINUTE QUICK CHARGE



Charge for just 5 minutes and get up to 2 hours of use from the transmitter and receiver—ideal for a quick power boost. With 3C fast charging support, a full charge takes only about 50 minutes, so you can get back to creating in no time.

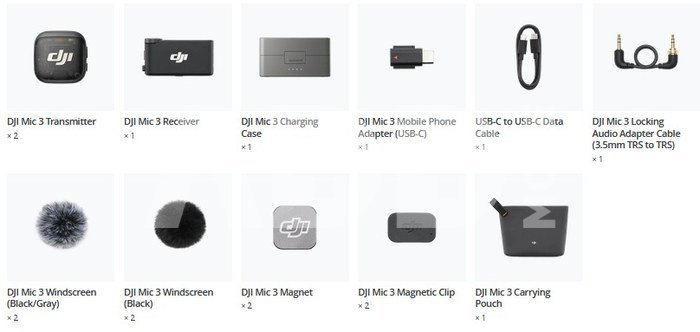

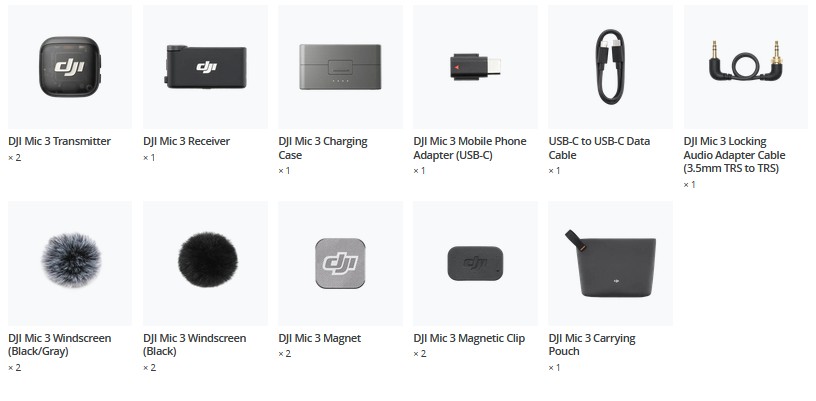

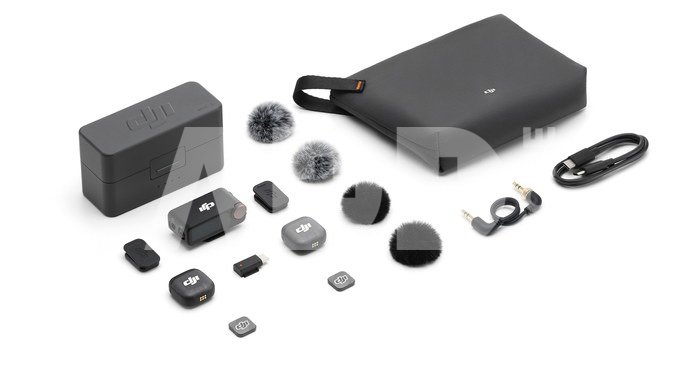

PACKAGE CONTENT



DJI Mic 3 Transmitter x 2

DJI Mic 3 Receiver x 1

DJI Mic 3 Charging Case x 1

DJI Mic 3 Mobile Phone Adapter (USB-C) x 1

USB-C to USB-C Data Cable x 1

DJI Mic 3 Locking Audio Adapter Cable (3.5mm TRS to TRS) x 1

DJI Mic 3 Windscreen (Black/Gray) x 2

DJI Mic 3 Windscreen (Black) x 2

DJI Mic 3 Magnet x 2

DJI Mic 3 Magnetic Clip x 2

DJI Mic 3 Carrying Pouch x 1













SPECIFICATIONS



Dimensions (transmitter): 28.77×28.34×16.35 mm (length × width × heigt) (with magnet)

Weight (transmitter): 16 g (with magnet)

Wireless Mode (transmitter): Wi-Fi: 802.11 a/b/g/n/ac/ax; SDR: Customizable

Equivalent Isotropic Radiated Power (EIRP): Wi-Fi: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE). SDR: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC); 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE). Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Wireless Mode Operating Frequency (transmitter): Wi-Fi: 2.400-2.4835 GHz; 5.725-5.850 GHz. SDR: 2.400-2.4835 GHz; 5.150-5.250 GHz; 5.250-5.350 GHz; 5.470-5.725 GHz; 5.725-5.850 GHz. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Bluetooth Protocol (transmitter): Bluetooth 5.4

Bluetooth Operating Frequency (transmitter): 2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP): BLE: < 10 dBm. BR/EDR: < 20 dBm. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Battery Type (transmitter): Li-ion

Battery Capacity (transmitter): 137 mAh

Battery Energy (transmitter): 0.531 Wh

Battery Voltage (transmitter): 3.87 V

Charging Specification (transmitter): Max 5 V

Charging Temperature (transmitter): 5° to 45° C

Operating Temperature (transmitter): -10° to 45° C

Charging Time (transmitter): Approx. 50 minutes

Operating Time (transmitter): 8 hours. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.

Internal Recording Available Duration (transmitter): 24-bit (single file): 57.3 hours; 24-bit (dual file): 28.6 hours; 32-bit float (single file): 43.0 hours; 32-bit float (dual file): 21.5 hours

Dimensions (receiver): 53.85 × 28.69 × 22.00 mm (lenght ×width × height)

Weight (receiver): 25.1 g

Wireless Mode (receiver): Wi-Fi: 802.11 a/b/g/n/ac/ax; SDR: Customizable

Equivalent Isotropic Radiated Power (EIRP) (receiver): Wi-Fi: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE). SDR: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC); 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE). Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Operating Frequency (receiver): Wi-Fi: 2.400-2.4835 GHz; 5.725-5.850 GHz. SDR: 2.400-2.4835 GHz; 5.150-5.250 GHz; 5.250-5.350 GHz; 5.470-5.725 GHz; 5.725-5.850 GHz. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Bluetooth Protocol (receiver): Bluetooth 5.4

Bluetooth Operating Frequency (receiver): 2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP) (receiver):  BLE: < 10 dBm

Battery Type (receiver): Li-ion

Battery Capacity (receiver): 275 mAh

Battery Energy (receiver): 1.065 Wh

Battery Voltage (receiver): 3.87 V

Charging Specification (receiver): Max 5 V

Charging Temperature (receiver): 5° to 45° C

Operating Temperature (receiver): -10° to 45° C

Charging Time (receiver): Approx. 50 minutes

Operating Time (receiver): 10 hours. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.

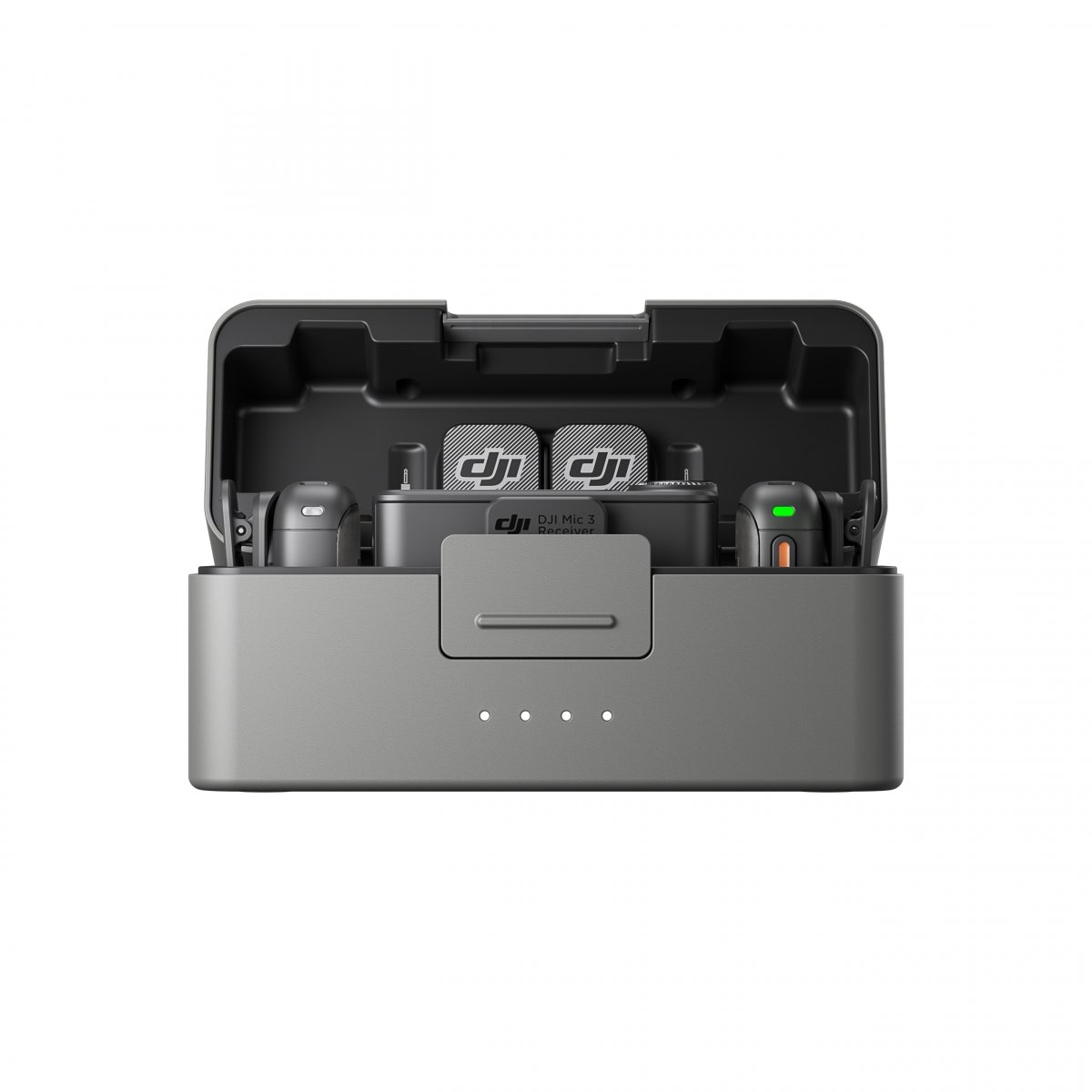

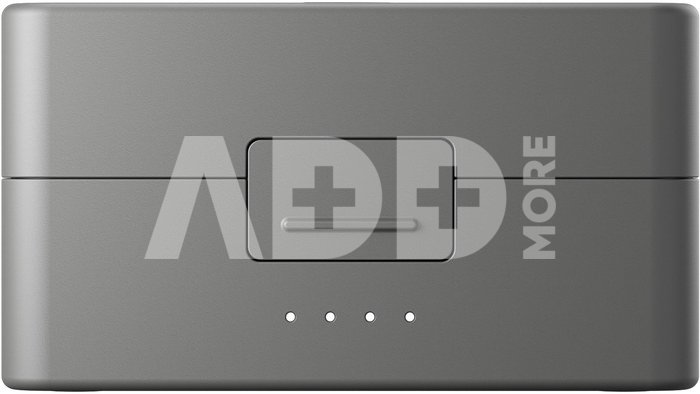

Dimensions (charging case): 106.30 × 42.50 × 59.20 mm (length × width × height)

Weight (charging case): 164.1 g (charging case only)

Battery Type (charging case): Li-ion

Battery Capacity (charging case): 1950 mAh

Battery Energy (charging case): 7.55 Wh

Battery Voltage (charging case): 3.87 V

Charging Specification (charging case): Max 5 V, 1.5-2 A

Charging Temperature (charging case): 5° to 40° C

Operating Temperature (charging case): 5° to 45° C

Charging Time (charging case): Approx. 1.5 hours

Charging Cycles for TX and RX: When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 2.4 times.

Polar Pattern: Omnidirectional

Frequency Response: Low Cut Off: 20 Hz-20 kHz (encoded); Low Cut Off: 20 Hz-24 kHz (lossless); Low Cut On: 100 Hz-20 kHz (encoded); Low Cut On: 100 Hz-24 kHz (lossless)

Microphone Sensitivity: Microphone Capsule: -36±1 dBV@1 kHz, 94 dB SPL

Signal-to-Noise Ratio (SNR): 72 dB

Maximum Sound Pressure Level (SPL): 126 dB SPL@1% THD; 130 dB SPL@10% THD

Sampling Frequency: 48 kHz

Bit Depth: 32-bit float/24-bit (switchable)

Equivalent Noise: 22 dBA

Monitor Interface Output Power: Max Output Power: 20 mW@1 kHz, 32 Ω

Max Transmission Distance: 400 m (Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with Lossless Audio off, in an open, unobstructed environment free of interference.); 80 m (Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in a laboratory-simulated high-interference environment, with no packet loss and clear, high-fidelity audio.)

Supported Frame Rate (timecode): 23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 50F, 60F

Offset (timecode): 0.5 ppm, deviation less than 1 frame within 24 hours* (* Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in an environment free of electromagnetic interference, with continuous power supplied to the transmitters and receiver following timecode synchronization and throughout 24 hours of continuous recording.)

Input (timecode): LTC

Input Port (timecode): 3.5mm TRS

Input Voltage (timecode): Not greater than +6 dBu

Output (timecode): LTC, Audio-TC

Output Port (timecode): 3.5mm TRS, USB-C

Output Voltage (timecode): 0.5 Vp-p
