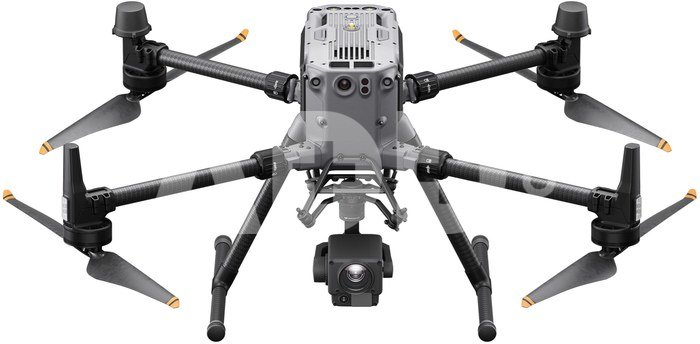

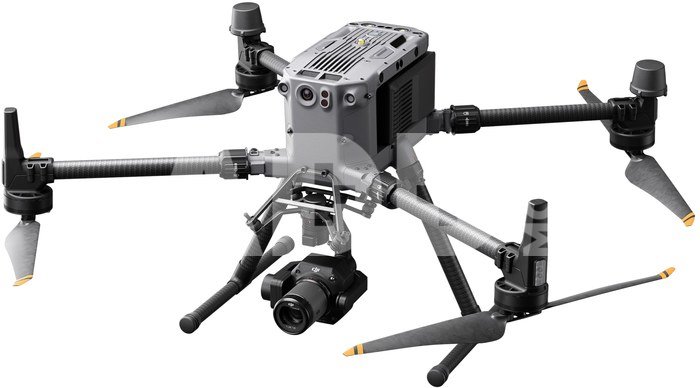

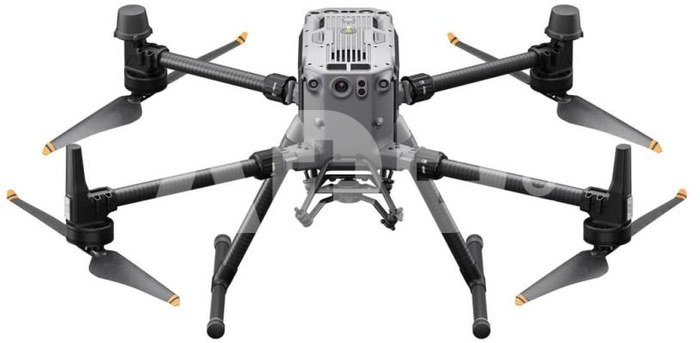

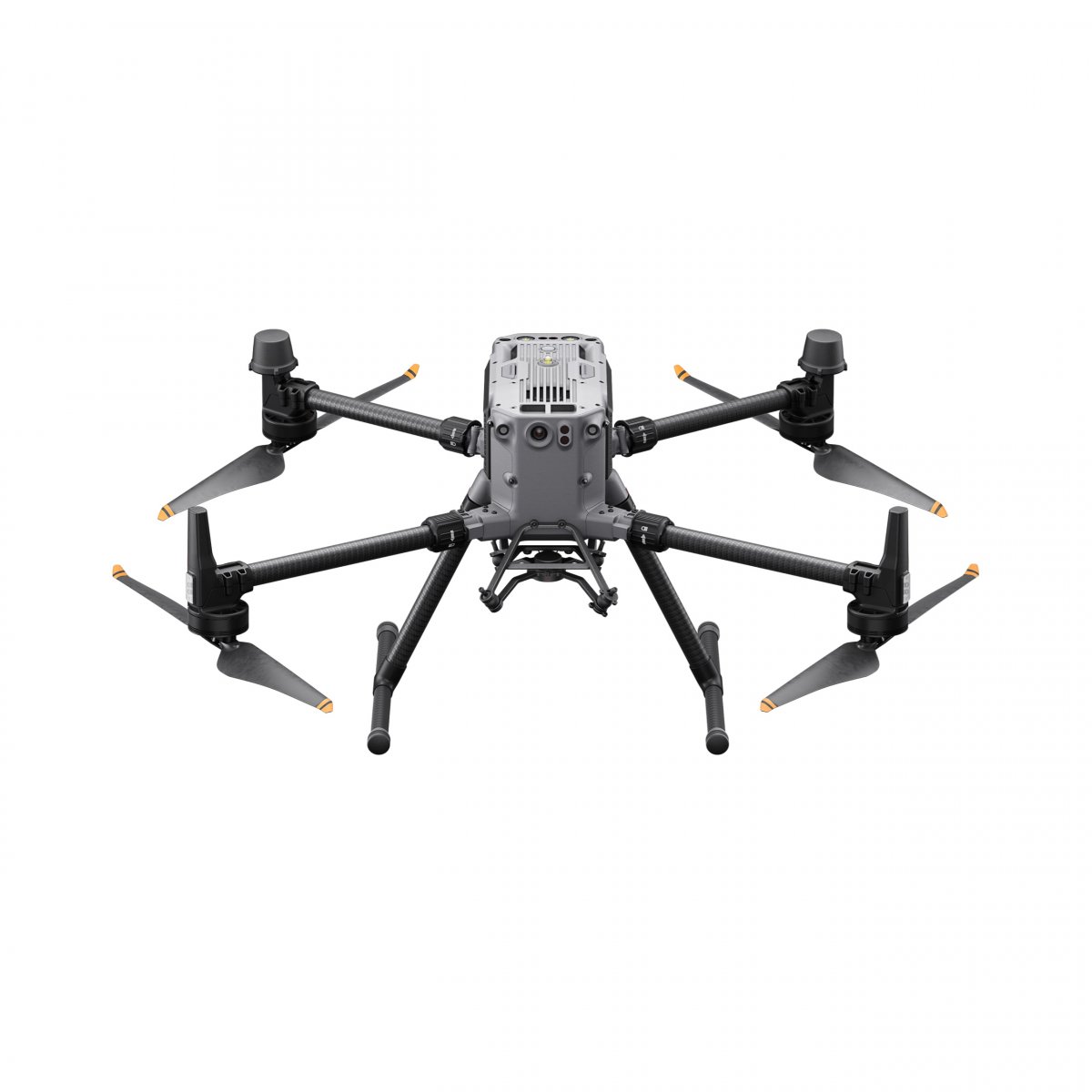

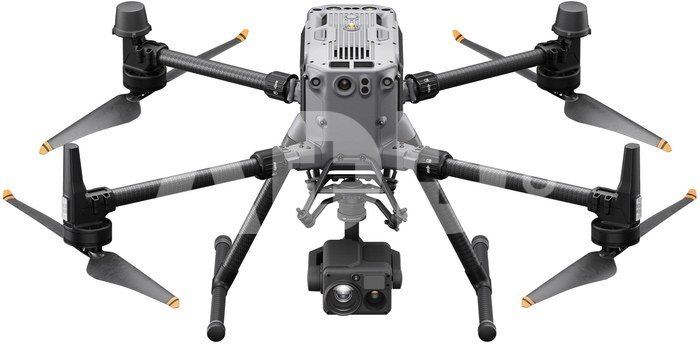

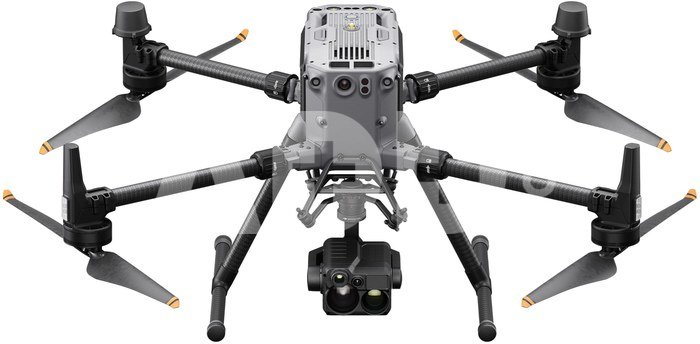

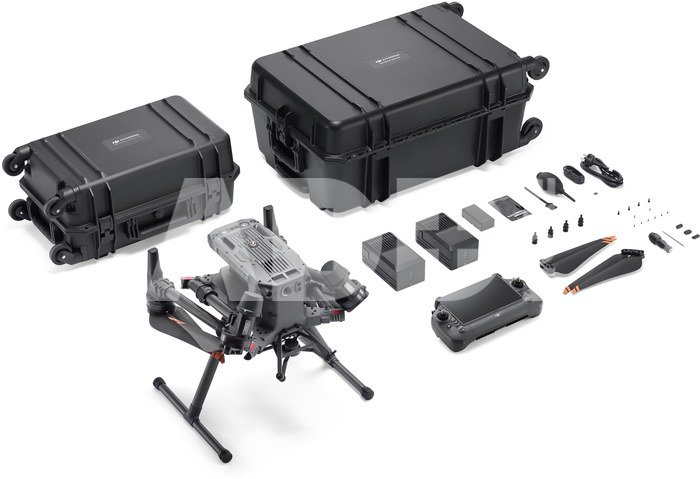

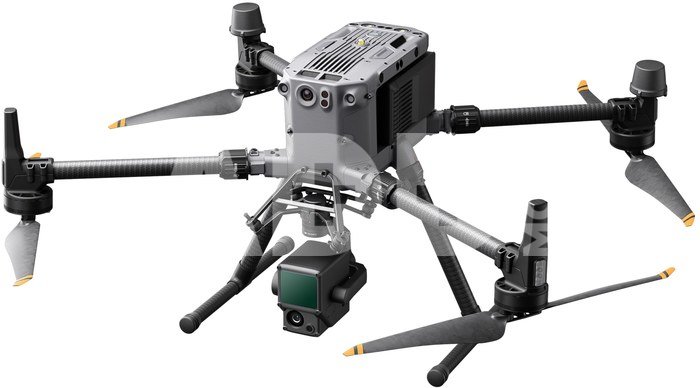

DJI Matrice 350 RTK Worry-Free Basic Combo. This kit consists of: Aircraft × 1; DJI RC Plus × 1; WB37 Intelligent Battery x 1; TB65 Intelligent Flight Battery x 2; Carrying Case x 1; BS65 Intelligent Battery Station x 1; Landing Gear x 2; Matrice 350 RTK 2110s Propellers (Pair) x 1; Screws and Tools x 1; Cleaning Tools x 1; Spare Gimbal Damper x 4; Rubber Port Cover (Set) x 1. An upgraded flagship drone platform, the DJI Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.
DJI Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, and a max transmission distance of 20 km. Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.
IP54 rated, DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.
The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.

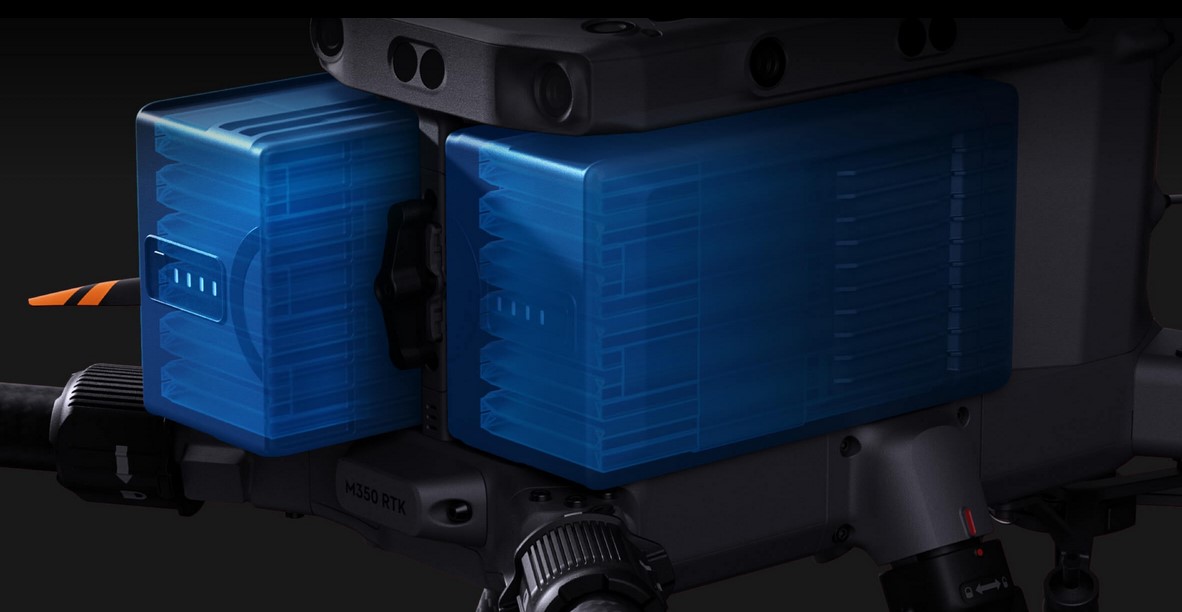

The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, reducing the cost of a single flight.
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport. Multiple Charging Modes: In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life. Intelligent Management: When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap. Effortless Transitions: The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.
The Matrice 350 RTK adds a new arm lock detection function to avoid the risk of unlocked arm sleeves, allowing you to focus on flight with more peace of mind. Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night. The Matrice 350 RTK is designed with a six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight. With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. The effective detection range is up to 30 m, further improving flight safety. Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to maximumly ensure flight safety, allowing you to cope with harsh operating environments more confidently.
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, and can carry three payloads simultaneously. The aircraft also has an E-Port open interface and a max payload capacity of 2.7 kg, meeting the needs of different operation scenarios like public safety, inspection, and mapping.
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

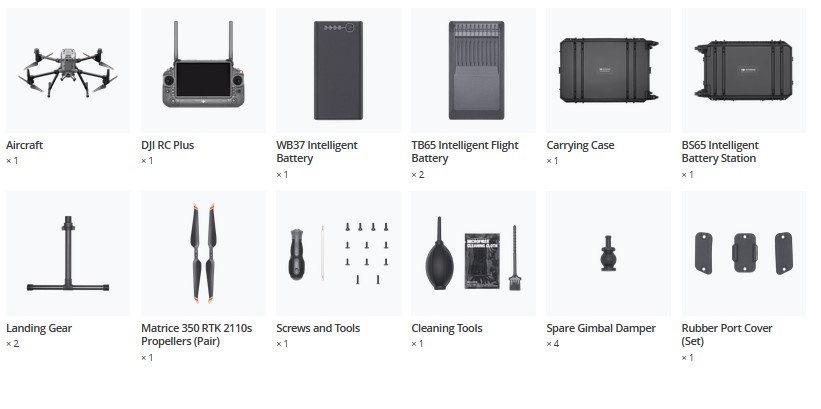

Aircraft × 1,
DJI RC Plus × 1,
WB37 Intelligent Battery x 1,
TB65 Intelligent Flight Battery x 2,
Carrying Case x 1,
BS65 Intelligent Battery Station x 1,
Landing Gear x 2,
Matrice 350 RTK 2110s Propellers (Pair) x 1,
Screws and Tools x 1,
Cleaning Tools x 1,
Spare Gimbal Damper x 4,
Rubber Port Cover (Set) x 1
Aircraft Dimensions (unfolded, without propellers): 810×670×430 mm (length × width × height)
Aircraft dimensions (folded, with propellers): 430×420×430 mm (length × width × height)
Diagonal Wheelbase: 895 mm
Aircraft Weight (with single downward gimbal): Without batteries approx. 3.77 kg; With two TB65 batteries approx. 6.47 kg
Single Gimbal Damper’s Max Payload: 960 g
Max Takeoff Weight: 9.2 kg
Operating Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz (CE: 5.170-5.250 GHz); 5.725-5.850 GHz. In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP): 2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC); 5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE); 5.725-5.850 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
Hovering Accuracy (with moderate or no wind): Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning); Horizontal: ±0.3 m (with vision positioning), ±1.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)
RTK Positioning Accuracy (RTK FIX): 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Max Angular Velocity: Pitch: 300°/s, Yaw: 100°/s
Max Pitch Angle: 30°. When in N mode and with the forward vision system enabled: 25°.
Max Ascent Speed: 6 m/s
Max Descent Speed (vertical): 5 m/s
Max Tilted Descent Speed: 7 m/s
Max Horizontal Speed: 23 m/s
Max Flight Altitude: 5000 m (When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg); 7000 m (When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg)
Max Wind Speed Resistance: 12 m/s
Max Flight Time: 55 minutes. Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Supported DJI Gimbals: Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, and Zenmuse P1
Third-Party Payload: Supports only certified payloads developed based on DJI Payload SDK.
Supported Gimbal Configurations: Single downward gimbal; Single upward gimbal; Dual downward gimbals; Single downward gimbal + single upward gimbal; Dual downward gimbals + single upward gimbal
Ingress Protection Rating: IP55. The IP rating is not permanently effective and may decrease due to product wear and tear.
Global Navigation Satellite System: GPS + GLONASS + BeiDou + Galileo
Operating Temperature: -20° to 50° C (-4° to 122° F)
Class: C3 (EU)
Screen of remote controller: 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
Video Transmission System: DJI O3 Enterprise Transmission
Antenna: 4 video transmission antennas, 2T4R
Intelligent Flight Battery: TB65, 5880 mAh, 44.76 V
Warranty 24 months
Delivery time 5-19 w.d.
| Producer(?) | DJI |
|---|---|
| Warranty | 24 months |
| Delivery time | 5-19 w.d. |
| Product codes |
06499EPB CP.EN.00000468.03 6941565961389 |
